Corrosion Under Insulation (CUI) remains the leading cause of piping integrity failure in North American oilfields, refineries and petrochemical plants. In the heavy industrial sectors of Alberta, Ontario, and other provinces, where extreme thermal cycling and moisture ingress are constant, traditional “wrap and clad” methods are often insufficient. Without a proactive mitigation strategy, facilities risk localized pitting, stress corrosion cracking (SCC), and catastrophic asset failure.
At MSCP, we specialize in advanced CUI mitigation through engineered separation and drainage. Our StandOff™ Insulation System is a field-proven solution designed to decouple the insulation from the pipe surface, effectively eliminating the primary conditions required for industrial corrosion. By integrating industrial insulation, pipe cladding, and engineered end caps for pipe terminations with drainage, it protects pipelines and equipment from CUI on pipes while maintaining thermal efficiency.
The Mechanics of CUI: Why Traditional Systems Fail
CUI is a multifaceted electrochemical process that accelerates when moisture is trapped at the pipe-insulation interface. This is typically driven by:
Capillary Wicking: Standard mineral wool or fiberglass can act as a sponge, holding water against the carbon steel.
Breached Cladding: Vibration, mechanical impact, or poor joint sealing allow rainwater and steam to bypass the external barrier.
Thermal Cycling: In Alberta’s SAGD and refinery operations, constant temperature swings create condensation beneath the cladding.
Traditional insulation methods lack a drainage path. Without an exit point, water remains in contact with the pipe, leading to high-velocity corrosion rates that go undetected until a leak occurs.
The Failure of Conventional Industrial Pipe Insulation
Many facilities rely on standard industrial pipe insulation that lacks internal ventilation. While thermally efficient, these systems:
Promote direct contact between moist insulation and the substrate.
Create “dead zones” at pipe terminations and end caps where water accumulates.
Increase the cost of Asset Integrity Inspections because the system must be fully stripped for visual or UT testing.
For the best CUI management, industrial operators are moving toward non-contact insulation systems that prioritize moisture evacuation.

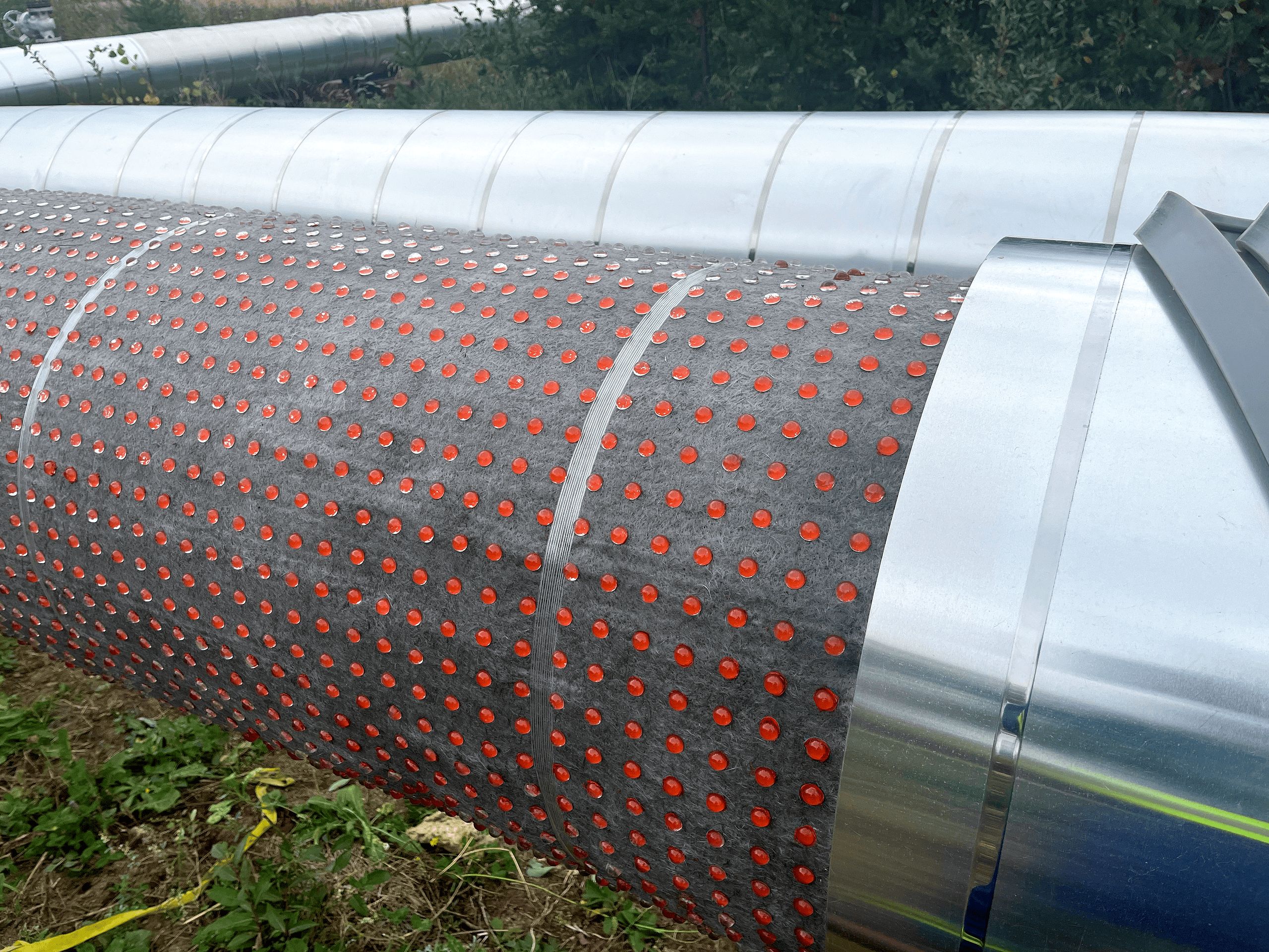

StandOff™ Insulation System: A Proactive Approach
The StandOff™ Insulation System was engineered specifically to address the weaknesses of traditional cladding. It moves away from “trapping” moisture and focuses on aeration and drainage:
Integrated Air Gap: A 6mm air gap separation prevents direct contact between the industrial insulation and the pipe, breaking the wicking cycle.
Hydrophobic Insulation Media: Utilizing high-performance materials that resist water absorption, maintaining thermal K-values in high-humidity zones.
Engineered End Caps with Gravity Drainage: Our proprietary StandOff™ End Caps feature precision-milled drainage slots at termination points to prevent water pooling.
Standardized Pipe Cladding: Custom-fit aluminum or stainless steel jacketing for insulation ensures a repeatable, high-quality seal across all facility assets.
By integrating insulation, cladding, and drainage into a single engineered system, StandOff™ significantly reduces the corrosion under insulation probability.
Benefits for Asset Integrity Management
Implementing an advanced StandOff™ Insulation CUI solution provides immediate operational advantages:
Lower Lifecycle Costs: Significant reduction in recurring insulation stripping and re-insulation during inspections.
Asset Life Extension: Prevents the localized pitting that leads to premature pipe replacement.
Enhanced Safety & Compliance: Meets all safety standards for industrial heat management and pressure piping.
Rapid Installation: Our modular system reduces field labor hours and ensures consistent quality compared to hand-applied stainless steel jacketing for insulation.
Applications: High-Risk Infrastructure for CUI
The StandOff™ Insulation System is engineered for the highest-threat areas in industrial facilities:
High-Temperature Steam Lines: Managing condensation during cool-down cycles.
Refinery & Petrochemical Piping: Protecting high-value assets from localized chemical corrosion.
SAGD & Mining Operations: Enduring Alberta’s extreme sub-zero to high-heat cycles.
Why Engineering Teams Partner with MSCP
MSCP is a leader in Canadian industrial services, providing an integrated approach to heat trace, pipe insulation, and CUI mitigation. We don’t just provide materials; we provide technical transparency.
Engineering Precision: Every StandOff™ Insulation component is manufactured in-house to ensure 100% QA/QC.
Digital Work Packages: We provide full photo documentation and inspection logs for every asset, allowing your integrity team to track the “as-built” condition remotely.
Turnkey Execution: From review and design to field installation by expert insulation installers in Alberta and Ontario.
FAQ
What is corrosion under insulation (CUI)?
CUI is corrosion that forms on metal surfaces beneath insulation due to trapped moisture. It is a hidden but costly problem in pipelines and industrial equipment.
How does StandOff™ prevent pipe corrosion?
By incorporating an air gap, hydrophobic insulation, and drainage-enabled end caps, StandOff™ eliminates water contact with metal surfaces, mitigating corrosion under insulation.
Where is StandOff™ applicable?
Ideal for Canadian oil and gas sites, refineries, pipelines, petrochemical plants, power systems, and mining operations.
Does it maintain industrial heat management?
Yes. StandOff™ provides reliable thermal efficiency while preventing corrosion in pipelines.
Why is CUI mitigation critical?
Preventing CUI reduces maintenance costs, extends asset life, ensures safety, and supports regulatory compliance, protecting both operations and budgets.
Start Your CUI Mitigation Strategy Today
CUI is a silent threat that compounds in cost every year it goes unaddressed. MSCP’s StandOff™ Insulation System offers the most advanced moisture management technology for Canadian industrial operators.
Protect your assets. Reduce your maintenance backlog. Ensure facility uptime.
